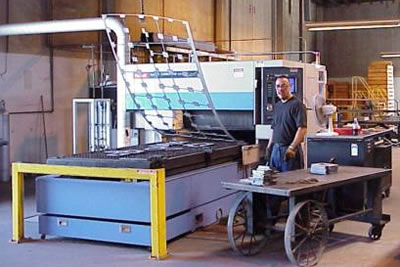

Mazak STX HIPRO 48 Supercharged Laser Cutter
 Fleming Metal Fabricators utilizes the Mazak STX Laser Cutter for maximum efficiency on a variety of fabricated projects. The constant length pivot beam delivery system combines the high performance features of a fixed beam with the small footprint of a variable beam length machine.
These high performance features include:
- Uniform cutting capability and accuracy at any point on the table
- Easier determination of cutting conditions
- Increased beam intensity at focal points
Mazak Technical Specifications:
- Maximum sheet size
- X-Axis programmable stroke
- Y-Axis programmable stroke
- Z-Axis programmable stroke
- Rapid traverse speed (X,Y Axis)
- Drive system
- Positioning accuracy
- Positioning repeatability
- Maximum material weight
- 49.2" x 98.4" (1250mm x 2500mm)
- 103.0" (2616mm)
- 50.0" (1270mm)
- 3.9" (100mm)
- 945 Ipm (24Mpm)
- Servo driven ball screw drive
- +/- 0.0004"/20.0" (+/- 0.01mm/500mm)
- +/- 0.0002" (+/- 0.005mm)
- Full sheet of .75" (19mm) mild steel
